Fiber Optics 81 0055 - Fluorescent Red 2.5 mm diameter Polystyrene
SKU: 81 0055
Price:
$36.47
| Quantity: | 50+ | 130+ | 325+ | 650+ | 1300+ |
| Price: | $32.83 | $27.62 | $23.38 | $19.61 | $16.56 |
Spool Length: n/a
Pricing (per Stk)
STK is 1.52 meters (5 foot) long.

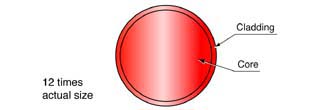

| Structure | ||||||
| Core Material | Polystyrene | |||||
| Cladding Material | Acrylic | |||||
| Core Refractive Index | 1.60 | |||||
| Refractive Index Profile | Step-index | |||||
| Numerical Aperture | .58 | |||||
| Number of Fibers | 1 | |||||
| Unit | Value | |||||
| Core Diameter | µm | 2040 - 2100 | ||||
| Cladding Diameter | µm | 2470 - 2530 | ||||
| Approximate Weight | g/m | 4.91 | ||||
| Performance | Criteria for Acceptance and/or [ Test Conditions ] |
Unit | Value | |||||
| Maximum Rating |
Storage Temperature | No Physical Deterioration [ in a Dry Atmosphere ] |
° C | -20 ~ 50 | ||||
| Operation Temperature | No Deterioration in Optical Properties [ in a Dry Atmosphere ] |
° C | -20 ~ 50 | |||||
| No Deterioration in Optical Properties [ under 95% RH condition ] |
° C | n/r | ||||||
| Optical Properties |
Optical Emission Peak | (650 nm Collimated Light) [ 25°C 50% RH ] |
nm | 635 | ||||
