Fiber Optics BC06145-04 Specification Sheet
SKU: BC06145-04
Price:
$11.61
| Quantity: | 25+ | 50+ | 1000+ | 2500+ | 5000+ |
| Price: | $9.67 | $7.74 | $7.58 | $7.28 | $6.84 |
Manufactured: OFS
Manufacturer's PDF Data Sheet
Applications: Outdoor Industrial
Spool Length: n/a
Pricing (per meter)

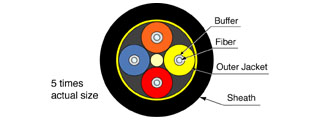

| Structure | ||||||
| Core Material | silica | |||||
| Cladding Material | polymer | |||||
| Core Refractive Index | 1.452 @ 850 nm | |||||
| Refractive Index Profile | Step-index | |||||
| Numerical Aperture | .37 | |||||
| Number of Fibers | 4 | |||||
| Unit | Value | |||||
| Core Diameter | µm | 200 ± 4 | ||||
| Cladding Diameter | µm | 230 | ||||
| Approximate Weight | g/m | 53 | ||||
| Jacket | ||||||
| Material and Color | ?/PE/ Black | |||||
| Indication on Jacket | ||||||
| Unit | Value | |||||
| Sub-unit Diameter | mm | 2.2 ± 0.15 | ||||
| Outer Diameter | mm | 8 | ||||
| Fiber Tensile Strength | N | 1170 | ||||
| Performance | Criteria for Acceptance and/or [ Test Conditions ] |
Unit | Value | |||||
| Maximum Rating |
Storage Temperature | No Physical Deterioration [ in a Dry Atmosphere ] |
° C | -40 to +80 | ||||
| Operation Temperature | No Deterioration in Optical Properties [ in a Dry Atmosphere ] |
° C | -40 to +80 | |||||
| No Deterioration in Optical Properties [ under 95% RH condition ] |
° C | -40 to +80 | ||||||
| Optical Properties |
Transmission Loss | (650 nm Collimated Light) [ 25°C 50% RH ] |
dB/m | < 8 dB/km @ 850 nm | ||||
| Transmission Loss under 95% RH |
(650 nm Collimated Light) [ Operation Temperature ] |
dB/m | ||||||
| Mechanical Characteristics |
Minimum Bend Radius | Loss Increment <0.5 dB [ A Quarter Bend ]*** |
mm | 120 | ||||
| Repeated Bending Endurance |
Loss Increment <1 dB [ In conformity to the JIS C 6861 ]*** |
Times | ||||||
| Tensile Strength | Tensile Force at 5% [ Elongation; in Conformity to the JIS C 6861 ] |
N | 1170 | |||||
| Twisting Strength | Loss Increment <1 dB [ Sample Length: 1 m Tensile Force: 4.9 N ] |
Times | ||||||
| Impact Strength | Loss Increment <1 dB [ Sample Length: 1 m JIS C 6861 ] |
N.m | ||||||
