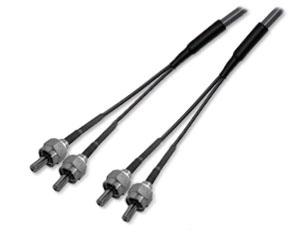

Industrial Fiber Optics manufactures multiple product lines of premium quality fiber optic patchcords suitable for industrial networking applications utilizing plastic optical fiber. This particular cable is made with a pair of industry-standard diameter 1.0 mm plastic optical fiber cores/cladding surrounded by a pair of black polyethylene 2.2 mm jackets, a layer of glass strands for strength and an outside 6 mm jacket of gray polyvinyl chloride with SMA 905 connectors. Patchcords are available in multiple standard lengths and shipped from stock or quickly fabricated from stocked inventory to meet short delivery schedules.
Features
- ESKA Premier™ fiber cable for industrial temperature ranges
- Strain reliefs to minimize fiber stress at terminations
- 1 µm polish terminations ensure high optical coupling efficiency
- Epoxied connector terminations for maximum retention strength
- Assembly processes exceed industry-standard procedures
| Specifications | ||||||
| Fiber Cable | GHTT4002 | |||||
| Connector 1 | SMA 905 | |||||
| Connector 2 | SMA 905 | |||||
| RoHS Compliance | YES | |||||
| Unit | Value | |||||
| Length | m | 1.00 +/-0.05 | ||||
| Loss Typical (per term.) | dB | TBD | ||||
| Loss Maximum (per term.) | dB | TBD | ||||
| Optical Loss | dB/m | .17 Max. @ 650 nm | ||||
| Operating Temperature | ° C | -40 ~ 85 | ||||
| Storage Temperature | ° C | -40 ~ 85 | ||||
| Fiber Tensile Strength | N | |||||
