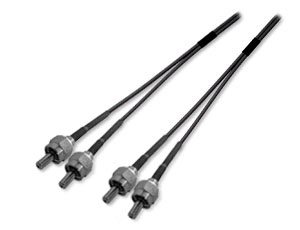

Industrial Fiber Optics manufactures multiple product lines of premium quality fiber optic patchcords suitable for industrial networking applications utilizing plastic optical fiber. This particular cable is made with a pair of industry-standard diameter 1.0 mm plastic optical fiber cores/cladding surrounded by a black polyethylene 2.2 mm x 4.4 mm jacket with SMA 905 connectors. Patchcords are available in multiple standard lengths and shipped from stock or quickly fabricated from stocked inventory to meet short delivery schedules.
Features
- ESKA Premier™ fiber cable for industrial temperature ranges
- Strain reliefs to minimize fiber stress at terminations
- 1 µm polish terminations ensure high optical coupling efficiency
- Epoxied connector terminations for maximum retention strength
- Assembly processes exceed industry-standard procedures
| Specifications | ||||||
| Fiber Cable | GH4002 | |||||
| Connector 1 | SMA 905 | |||||
| Connector 2 | SMA 905 | |||||
| RoHS Compliance | YES | |||||
| Unit | Value | |||||
| Length | m | 0.60 +/-0.03 | ||||
| Loss Typical (per term.) | dB | TBD | ||||
| Loss Maximum (per term.) | dB | TBD | ||||
| Optical Loss | dB/m | .17 Max. @ 650 nm | ||||
| Operating Temperature | ° C | -55 ~ 85 | ||||
| Storage Temperature | ° C | -55 ~ 85 | ||||
| Fiber Tensile Strength | N | |||||
