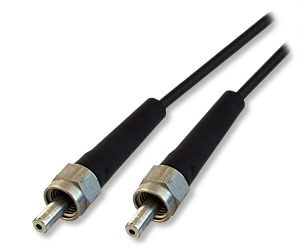

Industrial Fiber Optics manufactures multiple product lines of premium quality fiber optic patchcords suitable for SERCOS networking and other industrial networking applications. This particular cable series is for short distance applications such at those inside cabinets and those that will require moderate tensile strength, require for moderate physical abuse and/or exposure to chemicals. This patchcord consists of a fiber cable with the industry standard 1.0 mm optical core surrounded by a black polyethylene 2.2 mm jacket with all stainless steel SMA 905 connectors. Available to all customers and OEM manufacturing companies as direct purchase item.
Features
- Super ESKA™ fiber cable for commercial temperature ranges
- Strain reliefs to minimize fiber stress at terminations
- 1 µm polish terminations ensure high optical coupling efficiency
- Epoxied connector terminations for maximum retention strength
- Assembly processes exceed industry-standard procedures
| Specifications | ||||||
| Fiber Cable | SH4001 | |||||
| Connector 1 | SMA 905 | |||||
| Connector 2 | SMA 905 | |||||
| RoHS Compliance | YES | |||||
| Unit | Value | |||||
| Length | m | 0.90 +/-0.03 | ||||
| Loss Typical (per term.) | dB | TBD | ||||
| Loss Maximum (per term.) | dB | TBD | ||||
| Optical Loss | dB/m | .19 Max. @ 650 nm | ||||
| Operating Temperature | ° C | -55 ~ 70 | ||||
| Storage Temperature | ° C | -55 ~ 70 | ||||
| Fiber Tensile Strength | N | |||||
