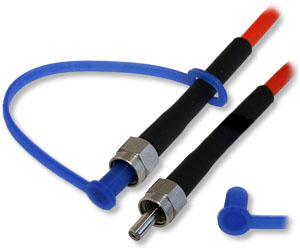

Industrial Fiber Optics manufactures multiple product lines of premium quality fiber optic patchcords suitable for SERCOS networking and other industrial networking applications. This particular cable is within the recommended series for applications such at those outside cabinets requiring maximum chemical resistance, specifically to petrochemicals, outside plant requiring resistance to UV light and/or significant physical abuse. These patchcords consist of a fiber cable with the industry standard 1.0 mm optical core with an inner jacket of black polyethylene and an outer jacket of orange Hytrel for an overall diameter of 3.85 mm with all stainless steel SMA 905 connectors. Available to all customers and OEM manufacturing companies as direct purchase item.
- Dual-jacket fiber cable for maximum chemical and UV resistance
- Epoxied connector terminations for maximum retention strength
- 1 µm polish terminations ensure high optical coupling efficiency
- Strain reliefs to control bend radii at connector body
- Assembly processes exceed industry-standard procedures
- Standard lengths for quick delivery
| Specifications | ||||||
| Fiber Cable | GHEL4001 | |||||
| Connector 1 | SMA 905 | |||||
| Connector 2 | SMA 905 | |||||
| RoHS Compliance | YES | |||||
| Unit | Value | |||||
| Length | m | 2.80 +/-0.05 | ||||
| Loss Typical (per term.) | dB | TBD | ||||
| Loss Maximum (per term.) | dB | TBD | ||||
| Optical Loss | dB/m | .17 Max. @ 650 nm | ||||
| Operating Temperature | ° C | -40 ~ 85 | ||||
| Storage Temperature | ° C | -40 ~ 85 | ||||
| Fiber Tensile Strength | N | 450 | ||||
