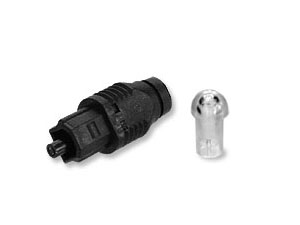

Fiber Optics 51 0185 FO-5 - Digital Audio General Purpose Connector

SKU: 51 0185
Price:
$0.77

Quantity: 50+100+250+500+1000+5000+
Price: $0.68$0.54$0.45$0.42$0.38$0.35
Qty: - +
0 Review(s)

Manufacture:
RoHS Certification: No

Applications: All digital audio connections using standard core plastic optical fiber with a 2.2 mm OD jacket.



Structure
  Ferrule Material   Polymer

  Connector Body Material   Polymer

  Crimp   N/A

  Epoxy   Optional

  Termination/Polishing   Polish or hot plate

  Number of Fibers   1

    Unit   Value

  Optical Fiber Size   mm   1

  Jacket Diameter   mm   2.2

  Approximate Weight   g

Performance   Criteria for Acceptance
and/or
[ Test Conditions ]		   Unit   Value




Maximum
Rating		   Storage Temperature   No Physical Deterioration
[ in a Dry Atmosphere ]		   ° C   -40 ~ 70

  Operation Temperature   No Deterioration in Optical Properties
[ in a Dry Atmosphere ]		   ° C   -40 ~ 70

Optical
Properties		   Typical Loss   (650 nm Light)
[ 25°C 50% RH ]		   dB   2

Maximum Loss   (650 nm Collimated Light)
[ 25°C 50% RH ]		   dB
